1. Crystal Structure and Polytypism of Silicon Carbide
1.1 Cubic and Hexagonal Polytypes: From 3C to 6H and Past

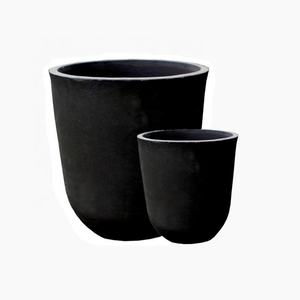

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalently bound ceramic composed of silicon and carbon atoms set up in a tetrahedral coordination, creating one of the most complicated systems of polytypism in products scientific research.
Unlike a lot of ceramics with a solitary secure crystal framework, SiC exists in over 250 recognized polytypes– unique stacking series of close-packed Si-C bilayers along the c-axis– ranging from cubic 3C-SiC (additionally referred to as β-SiC) to hexagonal 6H-SiC and rhombohedral 15R-SiC.
The most usual polytypes made use of in design applications are 3C (cubic), 4H, and 6H (both hexagonal), each showing somewhat different electronic band frameworks and thermal conductivities.
3C-SiC, with its zinc blende structure, has the narrowest bandgap (~ 2.3 eV) and is normally expanded on silicon substrates for semiconductor devices, while 4H-SiC uses remarkable electron mobility and is preferred for high-power electronics.
The strong covalent bonding and directional nature of the Si– C bond confer outstanding hardness, thermal stability, and resistance to slip and chemical assault, making SiC perfect for severe atmosphere applications.
1.2 Defects, Doping, and Electronic Quality
Despite its architectural complexity, SiC can be doped to attain both n-type and p-type conductivity, allowing its use in semiconductor gadgets.
Nitrogen and phosphorus function as benefactor impurities, presenting electrons into the transmission band, while light weight aluminum and boron serve as acceptors, producing holes in the valence band.
However, p-type doping performance is restricted by high activation energies, especially in 4H-SiC, which positions obstacles for bipolar tool style.
Indigenous problems such as screw misplacements, micropipes, and stacking faults can break down device performance by acting as recombination centers or leak courses, necessitating top quality single-crystal development for electronic applications.
The wide bandgap (2.3– 3.3 eV depending on polytype), high failure electrical field (~ 3 MV/cm), and superb thermal conductivity (~ 3– 4 W/m · K for 4H-SiC) make SiC much above silicon in high-temperature, high-voltage, and high-frequency power electronics.
2. Processing and Microstructural Engineering
( Silicon Carbide Ceramics)
2.1 Sintering and Densification Methods
Silicon carbide is naturally difficult to compress due to its strong covalent bonding and low self-diffusion coefficients, needing innovative handling techniques to achieve full density without ingredients or with very little sintering aids.
Pressureless sintering of submicron SiC powders is possible with the addition of boron and carbon, which advertise densification by removing oxide layers and boosting solid-state diffusion.
Hot pushing applies uniaxial pressure throughout home heating, enabling complete densification at lower temperature levels (~ 1800– 2000 ° C )and creating fine-grained, high-strength elements ideal for cutting devices and wear parts.
For large or complex forms, response bonding is used, where permeable carbon preforms are infiltrated with molten silicon at ~ 1600 ° C, developing β-SiC in situ with minimal contraction.
Nevertheless, recurring cost-free silicon (~ 5– 10%) continues to be in the microstructure, restricting high-temperature performance and oxidation resistance over 1300 ° C.
2.2 Additive Production and Near-Net-Shape Construction
Current advances in additive manufacturing (AM), particularly binder jetting and stereolithography using SiC powders or preceramic polymers, allow the manufacture of complicated geometries formerly unattainable with conventional methods.
In polymer-derived ceramic (PDC) courses, liquid SiC precursors are formed by means of 3D printing and afterwards pyrolyzed at high temperatures to generate amorphous or nanocrystalline SiC, frequently requiring further densification.
These techniques minimize machining costs and product waste, making SiC extra easily accessible for aerospace, nuclear, and warm exchanger applications where elaborate styles improve performance.
Post-processing actions such as chemical vapor infiltration (CVI) or fluid silicon seepage (LSI) are often made use of to improve thickness and mechanical honesty.
3. Mechanical, Thermal, and Environmental Efficiency
3.1 Strength, Firmness, and Wear Resistance
Silicon carbide places amongst the hardest recognized materials, with a Mohs hardness of ~ 9.5 and Vickers solidity going beyond 25 GPa, making it very resistant to abrasion, disintegration, and damaging.
Its flexural strength commonly varies from 300 to 600 MPa, depending on handling technique and grain dimension, and it preserves strength at temperatures approximately 1400 ° C in inert ambiences.
Crack sturdiness, while moderate (~ 3– 4 MPa · m ¹/ ²), is sufficient for many structural applications, particularly when combined with fiber support in ceramic matrix composites (CMCs).
SiC-based CMCs are used in generator blades, combustor linings, and brake systems, where they provide weight financial savings, fuel effectiveness, and extended service life over metallic equivalents.
Its superb wear resistance makes SiC suitable for seals, bearings, pump elements, and ballistic shield, where longevity under extreme mechanical loading is critical.
3.2 Thermal Conductivity and Oxidation Security
Among SiC’s most important buildings is its high thermal conductivity– up to 490 W/m · K for single-crystal 4H-SiC and ~ 30– 120 W/m · K for polycrystalline types– exceeding that of numerous metals and making it possible for efficient warm dissipation.
This home is crucial in power electronics, where SiC gadgets create much less waste warm and can run at higher power thickness than silicon-based devices.
At elevated temperatures in oxidizing settings, SiC develops a safety silica (SiO TWO) layer that slows down more oxidation, giving good environmental toughness up to ~ 1600 ° C.
Nonetheless, in water vapor-rich atmospheres, this layer can volatilize as Si(OH)FOUR, bring about increased destruction– an essential difficulty in gas turbine applications.
4. Advanced Applications in Power, Electronics, and Aerospace
4.1 Power Electronics and Semiconductor Devices
Silicon carbide has actually reinvented power electronics by enabling tools such as Schottky diodes, MOSFETs, and JFETs that run at higher voltages, regularities, and temperature levels than silicon equivalents.
These tools decrease power losses in electric cars, renewable energy inverters, and commercial motor drives, adding to worldwide power efficiency renovations.
The capability to run at joint temperature levels over 200 ° C permits simplified cooling systems and enhanced system reliability.
Moreover, SiC wafers are made use of as substrates for gallium nitride (GaN) epitaxy in high-electron-mobility transistors (HEMTs), incorporating the advantages of both wide-bandgap semiconductors.
4.2 Nuclear, Aerospace, and Optical Systems
In nuclear reactors, SiC is an essential component of accident-tolerant gas cladding, where its low neutron absorption cross-section, radiation resistance, and high-temperature stamina improve safety and security and performance.
In aerospace, SiC fiber-reinforced compounds are made use of in jet engines and hypersonic automobiles for their light-weight and thermal stability.
Additionally, ultra-smooth SiC mirrors are employed precede telescopes because of their high stiffness-to-density proportion, thermal security, and polishability to sub-nanometer roughness.
In recap, silicon carbide porcelains represent a foundation of modern sophisticated materials, incorporating exceptional mechanical, thermal, and electronic properties.
Via exact control of polytype, microstructure, and handling, SiC continues to make it possible for technological advancements in power, transportation, and extreme environment design.
