1. Principles of Silica Sol Chemistry and Colloidal Security
1.1 Structure and Fragment Morphology

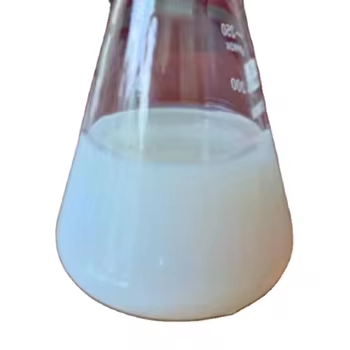

(Silica Sol)
Silica sol is a secure colloidal diffusion including amorphous silicon dioxide (SiO â‚‚) nanoparticles, commonly varying from 5 to 100 nanometers in diameter, put on hold in a liquid phase– most typically water.
These nanoparticles are composed of a three-dimensional network of SiO four tetrahedra, developing a permeable and highly reactive surface area abundant in silanol (Si– OH) groups that control interfacial habits.
The sol state is thermodynamically metastable, kept by electrostatic repulsion between charged fragments; surface area charge develops from the ionization of silanol teams, which deprotonate over pH ~ 2– 3, generating adversely charged fragments that drive away each other.
Particle shape is typically spherical, though synthesis problems can influence gathering tendencies and short-range ordering.
The high surface-area-to-volume proportion– often surpassing 100 m TWO/ g– makes silica sol extremely reactive, making it possible for solid communications with polymers, steels, and biological molecules.
1.2 Stablizing Mechanisms and Gelation Transition
Colloidal security in silica sol is mostly regulated by the balance between van der Waals appealing forces and electrostatic repulsion, explained by the DLVO (Derjaguin– Landau– Verwey– Overbeek) theory.
At reduced ionic stamina and pH values above the isoelectric point (~ pH 2), the zeta potential of particles is adequately adverse to stop aggregation.
However, enhancement of electrolytes, pH change towards nonpartisanship, or solvent dissipation can evaluate surface area costs, reduce repulsion, and trigger bit coalescence, leading to gelation.
Gelation includes the development of a three-dimensional network through siloxane (Si– O– Si) bond formation in between nearby particles, transforming the fluid sol into a stiff, permeable xerogel upon drying out.
This sol-gel transition is reversible in some systems yet typically results in long-term architectural changes, developing the basis for innovative ceramic and composite manufacture.
2. Synthesis Paths and Process Control
( Silica Sol)
2.1 Stöber Technique and Controlled Development
The most widely recognized method for producing monodisperse silica sol is the Stöber procedure, established in 1968, which entails the hydrolysis and condensation of alkoxysilanes– commonly tetraethyl orthosilicate (TEOS)– in an alcoholic tool with aqueous ammonia as a catalyst.
By precisely managing specifications such as water-to-TEOS proportion, ammonia focus, solvent structure, and reaction temperature, bit dimension can be tuned reproducibly from ~ 10 nm to over 1 µm with narrow dimension distribution.
The mechanism proceeds by means of nucleation complied with by diffusion-limited growth, where silanol groups condense to create siloxane bonds, developing the silica structure.
This method is suitable for applications calling for uniform spherical fragments, such as chromatographic supports, calibration requirements, and photonic crystals.
2.2 Acid-Catalyzed and Biological Synthesis Routes
Different synthesis approaches include acid-catalyzed hydrolysis, which favors direct condensation and causes even more polydisperse or aggregated particles, frequently utilized in commercial binders and coverings.
Acidic problems (pH 1– 3) promote slower hydrolysis however faster condensation in between protonated silanols, bring about irregular or chain-like structures.
A lot more lately, bio-inspired and green synthesis techniques have actually arised, using silicatein enzymes or plant extracts to speed up silica under ambient conditions, minimizing energy consumption and chemical waste.
These lasting approaches are obtaining rate of interest for biomedical and environmental applications where pureness and biocompatibility are critical.
In addition, industrial-grade silica sol is frequently produced by means of ion-exchange processes from salt silicate remedies, followed by electrodialysis to remove alkali ions and support the colloid.
3. Functional Properties and Interfacial Habits
3.1 Surface Area Reactivity and Modification Techniques
The surface of silica nanoparticles in sol is dominated by silanol teams, which can participate in hydrogen bonding, adsorption, and covalent grafting with organosilanes.
Surface area alteration using combining representatives such as 3-aminopropyltriethoxysilane (APTES) or methyltrimethoxysilane presents functional groups (e.g.,– NH TWO,– CH SIX) that alter hydrophilicity, sensitivity, and compatibility with natural matrices.
These alterations allow silica sol to act as a compatibilizer in hybrid organic-inorganic compounds, boosting diffusion in polymers and enhancing mechanical, thermal, or obstacle residential or commercial properties.
Unmodified silica sol shows solid hydrophilicity, making it suitable for liquid systems, while customized variants can be distributed in nonpolar solvents for specialized coatings and inks.
3.2 Rheological and Optical Characteristics
Silica sol diffusions usually show Newtonian circulation behavior at reduced focus, yet thickness boosts with fragment loading and can shift to shear-thinning under high solids content or partial aggregation.
This rheological tunability is made use of in coverings, where controlled circulation and progressing are important for uniform movie formation.
Optically, silica sol is transparent in the noticeable spectrum because of the sub-wavelength size of fragments, which minimizes light scattering.
This transparency allows its use in clear finishings, anti-reflective movies, and optical adhesives without compromising visual clarity.
When dried out, the resulting silica movie retains transparency while providing solidity, abrasion resistance, and thermal security as much as ~ 600 ° C.
4. Industrial and Advanced Applications
4.1 Coatings, Composites, and Ceramics
Silica sol is extensively made use of in surface coatings for paper, textiles, metals, and building and construction products to enhance water resistance, scrape resistance, and longevity.
In paper sizing, it improves printability and dampness obstacle buildings; in foundry binders, it changes natural materials with environmentally friendly not natural options that break down easily during casting.
As a precursor for silica glass and porcelains, silica sol allows low-temperature construction of thick, high-purity components through sol-gel processing, staying clear of the high melting factor of quartz.
It is also utilized in financial investment casting, where it develops solid, refractory molds with great surface area coating.
4.2 Biomedical, Catalytic, and Power Applications
In biomedicine, silica sol works as a system for drug shipment systems, biosensors, and diagnostic imaging, where surface area functionalization allows targeted binding and controlled launch.
Mesoporous silica nanoparticles (MSNs), derived from templated silica sol, use high filling ability and stimuli-responsive release systems.
As a catalyst support, silica sol provides a high-surface-area matrix for immobilizing metal nanoparticles (e.g., Pt, Au, Pd), enhancing diffusion and catalytic performance in chemical makeovers.
In energy, silica sol is used in battery separators to boost thermal stability, in fuel cell membranes to boost proton conductivity, and in photovoltaic panel encapsulants to secure against wetness and mechanical stress.
In summary, silica sol stands for a foundational nanomaterial that bridges molecular chemistry and macroscopic functionality.
Its controlled synthesis, tunable surface area chemistry, and versatile handling allow transformative applications across sectors, from lasting production to advanced health care and energy systems.
As nanotechnology advances, silica sol continues to act as a model system for designing smart, multifunctional colloidal products.
