1. Product Foundations and Synergistic Style
1.1 Intrinsic Features of Component Phases

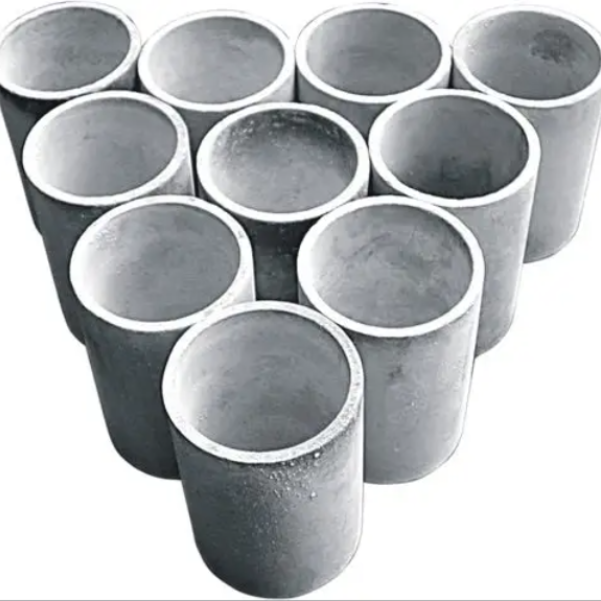

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si six N ₄) and silicon carbide (SiC) are both covalently adhered, non-oxide ceramics renowned for their remarkable efficiency in high-temperature, corrosive, and mechanically demanding settings.
Silicon nitride shows outstanding fracture strength, thermal shock resistance, and creep stability due to its one-of-a-kind microstructure composed of lengthened β-Si three N four grains that allow crack deflection and bridging mechanisms.
It maintains stamina as much as 1400 ° C and has a fairly reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), reducing thermal stresses during rapid temperature level changes.
In contrast, silicon carbide supplies exceptional solidity, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it excellent for unpleasant and radiative warmth dissipation applications.
Its broad bandgap (~ 3.3 eV for 4H-SiC) also provides superb electrical insulation and radiation resistance, beneficial in nuclear and semiconductor contexts.
When incorporated right into a composite, these products display complementary actions: Si two N four enhances toughness and damages resistance, while SiC enhances thermal management and use resistance.
The resulting hybrid ceramic accomplishes an equilibrium unattainable by either stage alone, forming a high-performance architectural material customized for extreme service conditions.
1.2 Composite Design and Microstructural Engineering
The style of Si five N FOUR– SiC compounds includes specific control over stage circulation, grain morphology, and interfacial bonding to make the most of collaborating impacts.
Commonly, SiC is presented as fine particulate reinforcement (varying from submicron to 1 µm) within a Si ₃ N ₄ matrix, although functionally graded or layered designs are likewise discovered for specialized applications.
Throughout sintering– normally using gas-pressure sintering (GENERAL PRACTITIONER) or warm pressing– SiC particles influence the nucleation and growth kinetics of β-Si five N ₄ grains, usually advertising finer and even more uniformly oriented microstructures.
This refinement improves mechanical homogeneity and minimizes flaw dimension, contributing to improved toughness and dependability.
Interfacial compatibility in between both stages is important; because both are covalent ceramics with comparable crystallographic proportion and thermal development habits, they develop coherent or semi-coherent borders that stand up to debonding under tons.
Ingredients such as yttria (Y TWO O FOUR) and alumina (Al two O TWO) are utilized as sintering aids to advertise liquid-phase densification of Si ₃ N four without endangering the security of SiC.
However, excessive second stages can degrade high-temperature performance, so make-up and processing should be enhanced to lessen glassy grain border movies.
2. Handling Methods and Densification Obstacles

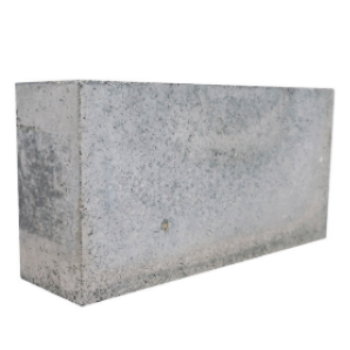

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Methods
High-quality Si Four N ₄– SiC composites begin with uniform blending of ultrafine, high-purity powders making use of damp round milling, attrition milling, or ultrasonic dispersion in organic or aqueous media.
Achieving consistent diffusion is important to stop cluster of SiC, which can act as tension concentrators and decrease crack sturdiness.
Binders and dispersants are contributed to maintain suspensions for shaping techniques such as slip casting, tape casting, or shot molding, relying on the preferred component geometry.
Green bodies are then thoroughly dried and debound to get rid of organics before sintering, a procedure calling for regulated heating rates to stay clear of splitting or contorting.
For near-net-shape production, additive methods like binder jetting or stereolithography are arising, making it possible for intricate geometries formerly unachievable with traditional ceramic handling.
These methods require tailored feedstocks with maximized rheology and green stamina, usually including polymer-derived porcelains or photosensitive resins filled with composite powders.
2.2 Sintering Systems and Stage Security
Densification of Si ₃ N ₄– SiC compounds is testing due to the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at useful temperature levels.
Liquid-phase sintering utilizing rare-earth or alkaline earth oxides (e.g., Y TWO O ₃, MgO) lowers the eutectic temperature and improves mass transport through a short-term silicate melt.
Under gas stress (normally 1– 10 MPa N TWO), this thaw facilitates rearrangement, solution-precipitation, and last densification while subduing decomposition of Si six N ₄.
The presence of SiC affects thickness and wettability of the liquid stage, possibly modifying grain growth anisotropy and last texture.
Post-sintering warmth therapies may be related to crystallize recurring amorphous stages at grain limits, boosting high-temperature mechanical residential properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently used to verify phase purity, lack of unwanted secondary stages (e.g., Si two N ₂ O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Load
3.1 Stamina, Durability, and Exhaustion Resistance
Si Five N ₄– SiC composites demonstrate remarkable mechanical performance compared to monolithic porcelains, with flexural toughness exceeding 800 MPa and crack durability values reaching 7– 9 MPa · m ¹/ ².
The enhancing impact of SiC bits restrains dislocation activity and fracture proliferation, while the extended Si two N ₄ grains continue to provide toughening with pull-out and bridging systems.
This dual-toughening approach leads to a product highly immune to effect, thermal cycling, and mechanical tiredness– crucial for revolving elements and architectural components in aerospace and power systems.
Creep resistance stays exceptional as much as 1300 ° C, attributed to the security of the covalent network and lessened grain limit moving when amorphous phases are reduced.
Firmness worths generally range from 16 to 19 GPa, offering excellent wear and erosion resistance in unpleasant environments such as sand-laden circulations or sliding calls.
3.2 Thermal Management and Environmental Longevity
The addition of SiC significantly raises the thermal conductivity of the composite, commonly doubling that of pure Si ₃ N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending on SiC material and microstructure.
This improved warm transfer capability allows for much more effective thermal monitoring in elements exposed to extreme localized home heating, such as burning linings or plasma-facing parts.
The composite keeps dimensional stability under high thermal slopes, standing up to spallation and splitting as a result of matched thermal expansion and high thermal shock parameter (R-value).
Oxidation resistance is an additional crucial benefit; SiC develops a protective silica (SiO TWO) layer upon direct exposure to oxygen at elevated temperature levels, which even more compresses and seals surface flaws.
This passive layer shields both SiC and Si Two N ₄ (which additionally oxidizes to SiO ₂ and N ₂), making sure long-term longevity in air, heavy steam, or burning atmospheres.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Power, and Industrial Systems
Si ₃ N ₄– SiC composites are significantly deployed in next-generation gas wind turbines, where they allow higher running temperature levels, improved fuel effectiveness, and minimized air conditioning requirements.
Components such as turbine blades, combustor liners, and nozzle guide vanes take advantage of the product’s capability to hold up against thermal cycling and mechanical loading without considerable destruction.
In atomic power plants, specifically high-temperature gas-cooled reactors (HTGRs), these composites work as fuel cladding or architectural supports as a result of their neutron irradiation tolerance and fission item retention ability.
In commercial settings, they are used in liquified metal handling, kiln furniture, and wear-resistant nozzles and bearings, where traditional steels would certainly stop working prematurely.
Their light-weight nature (density ~ 3.2 g/cm ³) additionally makes them appealing for aerospace propulsion and hypersonic lorry components based on aerothermal home heating.
4.2 Advanced Manufacturing and Multifunctional Assimilation
Arising study focuses on creating functionally graded Si two N ₄– SiC structures, where make-up varies spatially to enhance thermal, mechanical, or electromagnetic properties throughout a solitary component.
Hybrid systems incorporating CMC (ceramic matrix composite) styles with fiber reinforcement (e.g., SiC_f/ SiC– Si Six N ₄) press the limits of damages resistance and strain-to-failure.
Additive production of these composites makes it possible for topology-optimized heat exchangers, microreactors, and regenerative cooling networks with internal lattice structures unattainable via machining.
Moreover, their fundamental dielectric residential properties and thermal stability make them candidates for radar-transparent radomes and antenna windows in high-speed platforms.
As demands expand for materials that carry out dependably under extreme thermomechanical tons, Si three N FOUR– SiC compounds stand for a pivotal advancement in ceramic design, combining toughness with performance in a solitary, sustainable system.
Finally, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the toughness of 2 innovative porcelains to create a crossbreed system efficient in thriving in one of the most severe operational environments.
Their proceeded advancement will certainly play a main duty ahead of time tidy power, aerospace, and commercial innovations in the 21st century.
