1. Product Fundamentals and Morphological Advantages
1.1 Crystal Framework and Chemical Composition

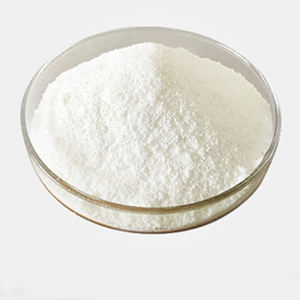

(Spherical alumina)
Spherical alumina, or spherical aluminum oxide (Al two O ₃), is an artificially generated ceramic material characterized by a distinct globular morphology and a crystalline framework predominantly in the alpha (α) phase.
Alpha-alumina, the most thermodynamically stable polymorph, features a hexagonal close-packed arrangement of oxygen ions with light weight aluminum ions occupying two-thirds of the octahedral interstices, causing high latticework power and phenomenal chemical inertness.
This stage displays superior thermal security, keeping stability up to 1800 ° C, and resists response with acids, antacid, and molten metals under the majority of commercial conditions.
Unlike irregular or angular alumina powders derived from bauxite calcination, spherical alumina is crafted via high-temperature processes such as plasma spheroidization or flame synthesis to accomplish consistent roundness and smooth surface area texture.
The transformation from angular forerunner fragments– commonly calcined bauxite or gibbsite– to dense, isotropic rounds removes sharp sides and internal porosity, boosting packing performance and mechanical longevity.
High-purity qualities (≥ 99.5% Al Two O TWO) are important for electronic and semiconductor applications where ionic contamination should be lessened.
1.2 Bit Geometry and Packaging Habits
The specifying function of round alumina is its near-perfect sphericity, usually measured by a sphericity index > 0.9, which dramatically influences its flowability and packing density in composite systems.
In comparison to angular particles that interlock and create voids, spherical bits roll past one another with minimal rubbing, making it possible for high solids packing during solution of thermal user interface materials (TIMs), encapsulants, and potting substances.
This geometric uniformity allows for maximum academic packing densities exceeding 70 vol%, far surpassing the 50– 60 vol% normal of irregular fillers.
Greater filler filling directly converts to enhanced thermal conductivity in polymer matrices, as the continuous ceramic network offers effective phonon transport pathways.
Additionally, the smooth surface minimizes endure handling equipment and minimizes thickness increase throughout mixing, boosting processability and dispersion security.
The isotropic nature of balls also stops orientation-dependent anisotropy in thermal and mechanical residential or commercial properties, guaranteeing consistent efficiency in all instructions.
2. Synthesis Methods and Quality Control
2.1 High-Temperature Spheroidization Methods
The manufacturing of round alumina primarily relies on thermal approaches that thaw angular alumina particles and allow surface area tension to reshape them right into balls.

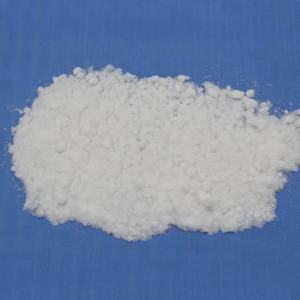

( Spherical alumina)
Plasma spheroidization is one of the most commonly utilized industrial method, where alumina powder is infused into a high-temperature plasma fire (approximately 10,000 K), triggering rapid melting and surface tension-driven densification right into ideal rounds.
The molten droplets strengthen rapidly throughout flight, developing dense, non-porous fragments with consistent size distribution when coupled with precise classification.
Alternative techniques consist of fire spheroidization using oxy-fuel lanterns and microwave-assisted home heating, though these usually provide reduced throughput or much less control over bit dimension.
The beginning product’s pureness and bit dimension distribution are critical; submicron or micron-scale precursors generate similarly sized spheres after processing.
Post-synthesis, the product undergoes strenuous sieving, electrostatic splitting up, and laser diffraction analysis to guarantee limited fragment dimension distribution (PSD), typically varying from 1 to 50 µm depending upon application.
2.2 Surface Modification and Practical Customizing
To boost compatibility with natural matrices such as silicones, epoxies, and polyurethanes, round alumina is often surface-treated with coupling agents.
Silane coupling representatives– such as amino, epoxy, or vinyl useful silanes– type covalent bonds with hydroxyl groups on the alumina surface area while giving natural capability that connects with the polymer matrix.
This treatment enhances interfacial adhesion, decreases filler-matrix thermal resistance, and avoids cluster, causing more uniform compounds with premium mechanical and thermal efficiency.
Surface area finishes can likewise be crafted to present hydrophobicity, improve diffusion in nonpolar resins, or allow stimuli-responsive behavior in wise thermal materials.
Quality assurance consists of dimensions of wager surface, faucet density, thermal conductivity (typically 25– 35 W/(m · K )for thick α-alumina), and pollutant profiling through ICP-MS to omit Fe, Na, and K at ppm degrees.
Batch-to-batch uniformity is necessary for high-reliability applications in electronics and aerospace.
3. Thermal and Mechanical Efficiency in Composites
3.1 Thermal Conductivity and User Interface Design
Spherical alumina is mainly used as a high-performance filler to enhance the thermal conductivity of polymer-based products utilized in electronic packaging, LED lighting, and power modules.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), filling with 60– 70 vol% spherical alumina can enhance this to 2– 5 W/(m · K), enough for efficient warmth dissipation in compact tools.
The high intrinsic thermal conductivity of α-alumina, integrated with marginal phonon spreading at smooth particle-particle and particle-matrix user interfaces, makes it possible for reliable warm transfer through percolation networks.
Interfacial thermal resistance (Kapitza resistance) remains a limiting element, but surface functionalization and optimized diffusion strategies help decrease this obstacle.
In thermal user interface products (TIMs), spherical alumina decreases contact resistance between heat-generating components (e.g., CPUs, IGBTs) and warm sinks, preventing overheating and expanding device life-span.
Its electrical insulation (resistivity > 10 ¹² Ω · cm) guarantees security in high-voltage applications, differentiating it from conductive fillers like metal or graphite.
3.2 Mechanical Stability and Integrity
Beyond thermal performance, spherical alumina boosts the mechanical effectiveness of composites by increasing firmness, modulus, and dimensional security.
The round shape disperses stress evenly, decreasing fracture initiation and propagation under thermal cycling or mechanical lots.
This is particularly important in underfill products and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal growth (CTE) inequality can cause delamination.
By readjusting filler loading and bit size circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published circuit boards, decreasing thermo-mechanical stress and anxiety.
In addition, the chemical inertness of alumina avoids deterioration in damp or destructive atmospheres, guaranteeing long-lasting reliability in auto, industrial, and outdoor electronics.
4. Applications and Technical Evolution
4.1 Electronic Devices and Electric Car Solutions
Round alumina is a vital enabler in the thermal management of high-power electronic devices, including insulated entrance bipolar transistors (IGBTs), power products, and battery administration systems in electric lorries (EVs).
In EV battery loads, it is integrated into potting compounds and phase change products to avoid thermal runaway by uniformly distributing heat throughout cells.
LED producers utilize it in encapsulants and secondary optics to preserve lumen output and shade consistency by decreasing joint temperature level.
In 5G framework and data centers, where warmth change thickness are climbing, spherical alumina-filled TIMs make certain secure procedure of high-frequency chips and laser diodes.
Its role is broadening right into advanced product packaging technologies such as fan-out wafer-level packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Sustainable Innovation
Future developments focus on crossbreed filler systems combining spherical alumina with boron nitride, light weight aluminum nitride, or graphene to accomplish synergistic thermal efficiency while keeping electrical insulation.
Nano-spherical alumina (sub-100 nm) is being explored for transparent porcelains, UV finishes, and biomedical applications, though difficulties in dispersion and cost stay.
Additive manufacturing of thermally conductive polymer composites using round alumina makes it possible for complicated, topology-optimized warm dissipation frameworks.
Sustainability initiatives include energy-efficient spheroidization processes, recycling of off-spec product, and life-cycle evaluation to decrease the carbon footprint of high-performance thermal products.
In summary, spherical alumina stands for an important engineered product at the crossway of ceramics, composites, and thermal scientific research.
Its distinct combination of morphology, pureness, and performance makes it indispensable in the recurring miniaturization and power concentration of modern electronic and power systems.
5. Vendor
TRUNNANO is a globally recognized Spherical alumina manufacturer and supplier of compounds with more than 12 years of expertise in the highest quality nanomaterials and other chemicals. The company develops a variety of powder materials and chemicals. Provide OEM service. If you need high quality Spherical alumina, please feel free to contact us. You can click on the product to contact us.
