Introduction to Light Weight Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has actually gained prevalent recognition for its remarkable thermal conductivity, electric insulation, and mechanical security at elevated temperatures. With a hexagonal wurtzite crystal framework, AlN displays an one-of-a-kind mix of buildings that make it the most perfect substratum product for applications in electronic devices, optoelectronics, power modules, and high-temperature atmospheres. Its ability to successfully dissipate warmth while keeping exceptional dielectric stamina positions AlN as a remarkable option to standard ceramic substrates such as alumina and beryllium oxide. This write-up explores the basic features of aluminum nitride ceramics, delves into construction techniques, and highlights its important roles across sophisticated technical domains.

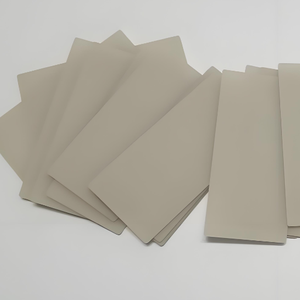

(Aluminum Nitride Ceramics)
Crystal Structure and Fundamental Quality
The efficiency of aluminum nitride as a substrate material is mostly dictated by its crystalline structure and intrinsic physical residential properties. AlN takes on a wurtzite-type latticework made up of alternating light weight aluminum and nitrogen atoms, which adds to its high thermal conductivity– commonly going beyond 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This value significantly goes beyond those of various other commonly utilized ceramic materials, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal efficiency, AlN possesses a vast bandgap of roughly 6.2 eV, causing outstanding electric insulation residential properties even at high temperatures. It additionally shows low thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an ideal suit for semiconductor tool product packaging. In addition, AlN shows high chemical inertness and resistance to molten metals, enhancing its suitability for severe environments. These consolidated characteristics develop AlN as a prominent candidate for high-power digital substratums and thermally took care of systems.
Manufacture and Sintering Technologies
Producing top notch aluminum nitride porcelains calls for accurate powder synthesis and sintering strategies to attain dense microstructures with marginal contaminations. Due to its covalent bonding nature, AlN does not conveniently compress via conventional pressureless sintering. Therefore, sintering aids such as yttrium oxide (Y ₂ O THREE), calcium oxide (CaO), or uncommon earth aspects are normally included in promote liquid-phase sintering and enhance grain boundary diffusion.
The manufacture procedure generally begins with the carbothermal decrease of light weight aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are then milled, shaped via techniques like tape spreading or shot molding, and sintered at temperature levels between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Warm pushing or spark plasma sintering (SPS) can further improve density and thermal conductivity by lowering porosity and promoting grain positioning. Advanced additive production methods are additionally being explored to make complex-shaped AlN elements with tailored thermal management abilities.
Application in Digital Packaging and Power Modules
Among one of the most noticeable uses light weight aluminum nitride porcelains is in electronic product packaging, especially for high-power gadgets such as shielded gateway bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities enhance in modern electronics, reliable warmth dissipation becomes vital to make sure dependability and long life. AlN substrates give an ideal option by combining high thermal conductivity with superb electric isolation, stopping brief circuits and thermal runaway problems.
In addition, AlN-based direct bound copper (DBC) and energetic metal brazed (AMB) substrates are progressively employed in power module layouts for electric lorries, renewable energy inverters, and commercial electric motor drives. Contrasted to typical alumina or silicon nitride substratums, AlN offers faster heat transfer and better compatibility with silicon chip coefficients of thermal development, consequently lowering mechanical stress and anxiety and improving overall system efficiency. Recurring study aims to boost the bonding toughness and metallization methods on AlN surface areas to additional expand its application range.
Use in Optoelectronic and High-Temperature Devices
Past electronic packaging, light weight aluminum nitride ceramics play a crucial duty in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal security. AlN is widely made use of as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications requiring sterilization, noticing, and optical interaction. Its broad bandgap and low absorption coefficient in the UV array make it an optimal prospect for supporting aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capability to work reliably at temperatures going beyond 1000 ° C makes it suitable for use in sensors, thermoelectric generators, and elements subjected to severe thermal loads. In aerospace and defense industries, AlN-based sensor bundles are used in jet engine monitoring systems and high-temperature control units where standard products would certainly stop working. Continual developments in thin-film deposition and epitaxial development methods are broadening the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Dependability
A vital factor to consider for any kind of substrate material is its long-lasting dependability under operational tensions. Light weight aluminum nitride shows superior environmental security compared to numerous other porcelains. It is very immune to rust from acids, alkalis, and molten metals, making certain durability in aggressive chemical atmospheres. However, AlN is at risk to hydrolysis when revealed to wetness at raised temperature levels, which can degrade its surface and decrease thermal performance.
To mitigate this problem, safety finishings such as silicon nitride (Si three N ₄), light weight aluminum oxide, or polymer-based encapsulation layers are often applied to enhance dampness resistance. Furthermore, cautious sealing and packaging techniques are carried out during device setting up to preserve the honesty of AlN substrates throughout their life span. As environmental guidelines end up being a lot more strict, the non-toxic nature of AlN also positions it as a recommended choice to beryllium oxide, which positions health and wellness risks during processing and disposal.
Conclusion
Aluminum nitride ceramics stand for a course of advanced products uniquely fit to deal with the expanding demands for effective thermal monitoring and electric insulation in high-performance electronic and optoelectronic systems. Their exceptional thermal conductivity, chemical security, and compatibility with semiconductor modern technologies make them one of the most suitable substratum material for a vast array of applications– from automotive power modules to deep UV LEDs and high-temperature sensing units. As manufacture technologies continue to develop and economical production techniques mature, the fostering of AlN substrates is anticipated to rise substantially, driving development in next-generation electronic and photonic devices.
