1. The Science and Structure of Alumina Porcelain Materials
1.1 Crystallography and Compositional Variations of Light Weight Aluminum Oxide

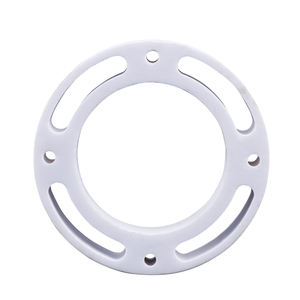

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from light weight aluminum oxide (Al ₂ O FOUR), a substance renowned for its extraordinary equilibrium of mechanical strength, thermal security, and electric insulation.
One of the most thermodynamically secure and industrially pertinent phase of alumina is the alpha (α) stage, which crystallizes in a hexagonal close-packed (HCP) framework coming from the corundum family.
In this arrangement, oxygen ions form a dense latticework with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites, causing a very stable and robust atomic structure.
While pure alumina is theoretically 100% Al Two O SIX, industrial-grade materials often contain tiny percentages of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y TWO O ₃) to manage grain development during sintering and boost densification.
Alumina ceramics are categorized by pureness levels: 96%, 99%, and 99.8% Al Two O five are common, with greater pureness associating to enhanced mechanical properties, thermal conductivity, and chemical resistance.
The microstructure– especially grain size, porosity, and stage distribution– plays a critical function in figuring out the last performance of alumina rings in service atmospheres.
1.2 Trick Physical and Mechanical Quality
Alumina ceramic rings display a suite of homes that make them vital sought after industrial setups.
They possess high compressive strength (as much as 3000 MPa), flexural toughness (normally 350– 500 MPa), and excellent solidity (1500– 2000 HV), enabling resistance to use, abrasion, and contortion under load.
Their low coefficient of thermal expansion (approximately 7– 8 × 10 ⁻⁶/ K) ensures dimensional security across wide temperature level ranges, lessening thermal stress and breaking during thermal biking.
Thermal conductivity arrays from 20 to 30 W/m · K, relying on purity, permitting moderate heat dissipation– enough for many high-temperature applications without the demand for energetic cooling.

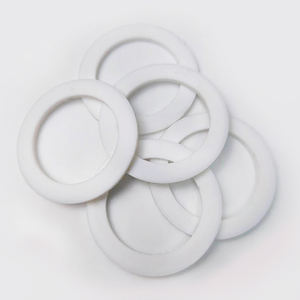

( Alumina Ceramics Ring)
Electrically, alumina is an exceptional insulator with a volume resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric strength of around 10– 15 kV/mm, making it suitable for high-voltage insulation components.
Additionally, alumina shows superb resistance to chemical assault from acids, alkalis, and molten steels, although it is susceptible to strike by strong antacid and hydrofluoric acid at elevated temperature levels.
2. Manufacturing and Precision Design of Alumina Bands
2.1 Powder Processing and Forming Strategies
The manufacturing of high-performance alumina ceramic rings begins with the option and preparation of high-purity alumina powder.
Powders are normally manufactured via calcination of light weight aluminum hydroxide or via advanced approaches like sol-gel handling to accomplish fine fragment size and slim dimension distribution.
To create the ring geometry, numerous shaping approaches are utilized, consisting of:
Uniaxial pressing: where powder is compacted in a die under high pressure to create a “eco-friendly” ring.
Isostatic pushing: applying consistent stress from all directions utilizing a fluid tool, resulting in greater density and even more uniform microstructure, particularly for complex or huge rings.
Extrusion: ideal for lengthy round types that are later on cut right into rings, often used for lower-precision applications.
Injection molding: utilized for complex geometries and tight tolerances, where alumina powder is blended with a polymer binder and infused into a mold.
Each technique affects the final thickness, grain alignment, and defect distribution, demanding cautious process selection based upon application needs.
2.2 Sintering and Microstructural Development
After forming, the eco-friendly rings go through high-temperature sintering, generally in between 1500 ° C and 1700 ° C in air or controlled environments.
Throughout sintering, diffusion devices drive fragment coalescence, pore elimination, and grain development, causing a fully thick ceramic body.
The rate of home heating, holding time, and cooling profile are precisely managed to avoid splitting, bending, or overstated grain development.
Additives such as MgO are usually introduced to inhibit grain limit movement, leading to a fine-grained microstructure that enhances mechanical strength and dependability.
Post-sintering, alumina rings may go through grinding and lapping to achieve limited dimensional resistances ( ± 0.01 mm) and ultra-smooth surface finishes (Ra < 0.1 µm), vital for securing, bearing, and electrical insulation applications.
3. Functional Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely made use of in mechanical systems because of their wear resistance and dimensional stability.
Key applications include:
Securing rings in pumps and shutoffs, where they withstand disintegration from rough slurries and destructive liquids in chemical handling and oil & gas sectors.
Birthing components in high-speed or harsh atmospheres where metal bearings would certainly deteriorate or require frequent lubrication.
Overview rings and bushings in automation equipment, providing low rubbing and long life span without the demand for oiling.
Put on rings in compressors and wind turbines, decreasing clearance between turning and fixed parts under high-pressure problems.
Their ability to preserve performance in completely dry or chemically hostile atmospheres makes them above several metal and polymer options.
3.2 Thermal and Electrical Insulation Roles
In high-temperature and high-voltage systems, alumina rings act as crucial shielding parts.
They are used as:
Insulators in heating elements and heater parts, where they sustain resisting cables while enduring temperature levels above 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, preventing electric arcing while keeping hermetic seals.
Spacers and support rings in power electronics and switchgear, separating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their low dielectric loss and high breakdown strength guarantee signal integrity.
The combination of high dielectric toughness and thermal security allows alumina rings to operate reliably in environments where organic insulators would weaken.
4. Product Advancements and Future Outlook
4.1 Composite and Doped Alumina Equipments
To additionally boost efficiency, researchers and makers are creating innovative alumina-based compounds.
Instances consist of:
Alumina-zirconia (Al ₂ O ₃-ZrO ₂) compounds, which exhibit enhanced fracture toughness through makeover toughening mechanisms.
Alumina-silicon carbide (Al two O TWO-SiC) nanocomposites, where nano-sized SiC bits boost hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can change grain boundary chemistry to boost high-temperature stamina and oxidation resistance.
These hybrid products extend the functional envelope of alumina rings right into even more severe conditions, such as high-stress vibrant loading or fast thermal cycling.
4.2 Arising Fads and Technical Assimilation
The future of alumina ceramic rings lies in clever assimilation and precision production.
Patterns include:
Additive production (3D printing) of alumina elements, allowing complex inner geometries and personalized ring designs previously unachievable through conventional techniques.
Functional grading, where structure or microstructure varies across the ring to optimize performance in different areas (e.g., wear-resistant external layer with thermally conductive core).
In-situ monitoring using ingrained sensors in ceramic rings for anticipating upkeep in industrial machinery.
Enhanced use in renewable energy systems, such as high-temperature fuel cells and focused solar energy plants, where product reliability under thermal and chemical stress is critical.
As industries demand higher effectiveness, longer life expectancies, and minimized upkeep, alumina ceramic rings will continue to play a pivotal duty in making it possible for next-generation design options.
5. Vendor
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina al2o3, please feel free to contact us. (nanotrun@yahoo.com)
