1. Intro to Oil Immersed Transformers
In the elaborate web of our modern-day electrical grid, transformers play an essential function, silently stepping voltage backwards and forwards to ensure electricity can be sent efficiently over cross countries and distributed safely to our homes and industries. Amongst the numerous kinds readily available, the oil immersed transformer stands as a testimony to proven integrity and resilience. For decades, these workhorses have actually created the foundation of power systems worldwide.
An oil immersed transformer is a kind of electrical transformer that utilizes a customized shielding oil as both a coolant and a shielding tool. This layout is primarily utilized for medium to high-power applications, making it a cornerstone of electrical framework. This overview digs deep into the world of oil immersed power transformers and oil immersed circulation transformers, exploring their technology, applications, and their evolving duty in an age of digitalization and renewable resource.
1.1 What is an Oil Submersed Transformer?
At its core, an oil submersed transformer includes a magnetic core and copper or light weight aluminum windings housed inside a secured container full of shielding oil. The main function of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, successfully protecting the high-voltage windings from the transformer’s core and grounded storage tank. This protects against short circuits and electrical breakdowns.
2. Cooling: As the transformer runs, the windings create significant warm as a result of I ² R losses. The distributing oil absorbs this warmth, convects it to the transformer’s tank wall surfaces, and dissipates it right into the bordering air. Larger systems commonly include radiators or fins to enhance the surface for a lot more effective air conditioning.
This dual-purpose use oil makes the oil submersed transformer exceptionally effective and durable, capable of dealing with high lots and holding up against short-term overloads better than several dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these units are oil submersed transformers, they serve unique functions within the power system network. Understanding the difference is critical.
An oil submersed power transformer is a heavyweight, generally used in transmission networks at generating terminals and major substations. Their key function is to “step-up” the voltage produced at the power plant to incredibly high degrees (e.g., 138 kV, 230 kV, 500 kV and above) for efficient long-distance transmission, and to “step-down” the voltage at receiving substations for additional circulation. They are defined by their extremely high power rankings (usually going beyond 100 MVA), intricate building and construction, and on-load faucet changers for voltage law.
An oil engaged circulation transformer, on the various other hand, executes the last action in the power shipment chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it to the low voltages (e.g., 400/230 V) utilized by business and domestic consumers. You generally discover them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have reduced power ratings (normally as much as 2,500 kVA), and are developed for maximum performance at lower, extra constant lots.

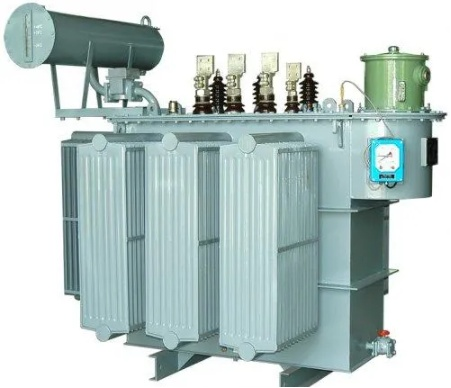

(Oil immersed power transformer)
2. Trick Benefits of Oil Submersed Transformers
The enduring appeal of the oil immersed transformer is not unintentional. It offers a suite of compelling advantages that make it the favored selection for lots of demanding applications.
2.1 Superior Cooling and Overload Capability
The superior thermal ability of oil contrasted to air allows an oil submersed power transformer to handle and dissipate warmth a lot more properly. This equates to a higher overload capability. During durations of top electrical energy demand, an oil submersed transformer can handle momentary overloads without sustaining damages, an important attribute for maintaining grid security. The oil’s circulation ensures also heat circulation, avoiding local locations that can weaken insulation with time.
2.2 Improved Insulation and Long Service Life
The combination of premium mineral oil and carefully impregnated paper insulation develops a dielectric system of exceptional toughness. This robust insulation system protects the transformer from voltage surges and transients, contributing to an operational life-span that can extend to 30-40 years or more with appropriate maintenance. The sealed container additionally shields the internal components from moisture, dirt, and other atmospheric contaminants.
2.3 High Efficiency and Cost-Effectiveness
For high-power applications, the oil submersed transformer is frequently one of the most affordable choice. The products made use of– mineral oil, steel container, and copper/aluminum windings– offer a beneficial balance of efficiency and price. The high performance of these transformers, specifically at their rated lots, causes lower energy losses over their life time, resulting in substantial expense savings for utility firms and huge commercial customers.
3. Warm Subjects and Future Trends
The world of oil submersed transformers is not fixed. It is continuously progressing to satisfy brand-new difficulties and integrate with modern technologies.
3.1 Naturally Degradable and Fire-Resistant Oils
Environmental and safety and security issues are driving a substantial shift far from conventional mineral oil. The marketplace is quickly taking on oil submersed transformers filled with naturally degradable esters (synthetic or natural). These oils provide a higher fire point (making them K-class fireproof), are much less poisonous, and are readily biodegradable, considerably minimizing the ecological impact in situation of a leak. This pattern is making oil immersed circulation transformers much safer for installment in metropolitan areas and eco sensitive areas.
3.2 Combination with Smart Grids and IoT
The modern-day oil immersed power transformer is ending up being an intelligent node in the clever grid. Sensors are being incorporated to check crucial specifications in real-time, including:
Dissolved Gas Analysis (DGA): Detecting mistake gases produced within the oil to anticipate incipient faults.
Temperature Level Surveillance: Tracking top-oil and hotspot temperatures.
Load and Power Quality Monitoring.
This data, transferred using IoT (Internet of Things) systems, allows predictive maintenance, protects against unexpected interruptions, and optimizes transformer application and life-span.
3.3 Supporting the Renewable Resource Transition
The worldwide promote renewables is developing new demand for oil immersed transformers. Massive solar farms and wind power setups need durable oil submersed power transformers to tip up the produced voltage to transmission degrees. Additionally, the intermittent nature of renewables locations better tension on grid elements, and the tested reliability and overload capacity of oil submersed transformers make them perfect for this crucial duty.
4. Option and Maintenance Ideal Practices
Picking the best transformer and keeping it correctly is key to a trusted power system.
4.1 Exactly how to Pick the Right Oil Immersed Transformer
Choosing between an oil submersed power transformer and an oil submersed circulation transformer depends on the application. Secret factors to consider consist of:
1. Voltage Degree and kVA Score: Match the transformer’s specifications to your system’s requirements.
2. Application: Transmission substation, plant, or commercial circulation.
3. Location: Indoor vs. outdoor, ecological problems, and fire safety regulations (which may affect the selection of shielding oil).
4. Effectiveness Specifications: Adhere to local performance criteria like DOE (United States) or EU CoC (Europe).
5. Budget: Think about both the first funding price and the overall cost of possession, including losses.

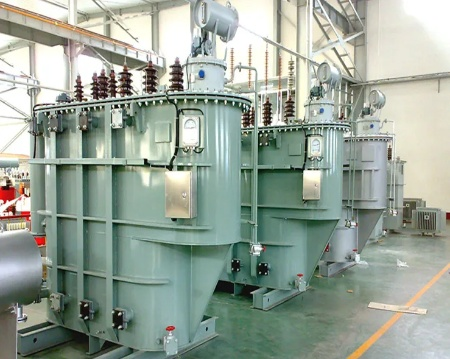

(Oil immersed distribution transformer)
4.2 Crucial Maintenance for Durability
Positive upkeep is essential for any kind of oil submersed transformer. A thorough program needs to include:
1. Normal Oil Tasting and Testing: Routine DGA and screening of dielectric stamina and moisture material are the most effective methods to examine the health and wellness of the transformer.
2. Bushing and Insulation Assessment: Visual checks for cracks, contamination, or leakages.
3. Faucet Changer Upkeep: Regular inspection and servicing of on-load or off-load tap changers.
4. Maintain it Clean and Dry: Making sure the tank outside, radiators, and rests are tidy and useful.
The oil submersed transformer, in its duties as both a high-capacity oil immersed power transformer and an ubiquitous oil immersed distribution transformer, stays an irreplaceable part of our worldwide energy facilities. Its tested style, combined with recurring innovations in insulating fluids and digital surveillance, ensures it will continue to be a reliable, reliable, and intelligent solution for powering our world for decades ahead. As we construct the grids of the future, incorporating more renewables and digital intelligence, the durable and adaptable oil immersed transformer will undoubtedly go to the heart of it.
