1.1 Quantum Confinement and Electronic Framework Improvement

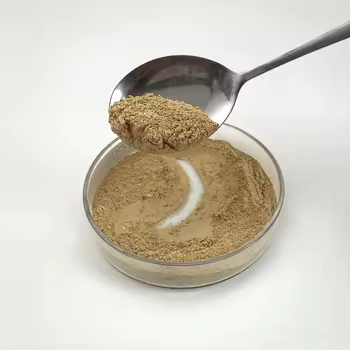

(Nano-Silicon Powder)

Nano-silicon powder, made up of silicon bits with characteristic measurements listed below 100 nanometers, represents a standard change from bulk silicon in both physical behavior and functional energy.

While bulk silicon is an indirect bandgap semiconductor with a bandgap of about 1.12 eV, nano-sizing causes quantum arrest effects that basically alter its digital and optical residential properties.

When the particle size methods or falls listed below the exciton Bohr span of silicon (~ 5 nm), charge service providers become spatially restricted, resulting in a widening of the bandgap and the introduction of noticeable photoluminescence– a sensation absent in macroscopic silicon.

This size-dependent tunability allows nano-silicon to produce light across the visible range, making it an appealing candidate for silicon-based optoelectronics, where typical silicon fails as a result of its poor radiative recombination efficiency.

Furthermore, the increased surface-to-volume ratio at the nanoscale improves surface-related sensations, consisting of chemical reactivity, catalytic activity, and interaction with magnetic fields.

These quantum impacts are not just academic interests but develop the structure for next-generation applications in power, picking up, and biomedicine.

1.2 Morphological Variety and Surface Chemistry

Nano-silicon powder can be synthesized in numerous morphologies, consisting of round nanoparticles, nanowires, porous nanostructures, and crystalline quantum dots, each offering distinct benefits depending on the target application.

Crystalline nano-silicon typically retains the diamond cubic framework of mass silicon but displays a greater density of surface area defects and dangling bonds, which must be passivated to support the material.

Surface functionalization– frequently attained with oxidation, hydrosilylation, or ligand attachment– plays a critical function in figuring out colloidal security, dispersibility, and compatibility with matrices in composites or organic atmospheres.

For example, hydrogen-terminated nano-silicon shows high sensitivity and is prone to oxidation in air, whereas alkyl- or polyethylene glycol (PEG)-covered particles exhibit boosted security and biocompatibility for biomedical usage.

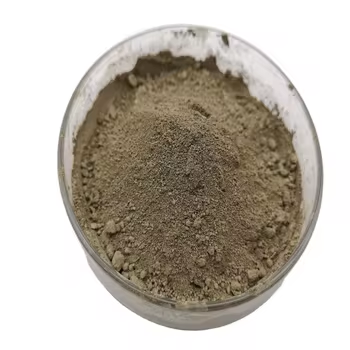

( Nano-Silicon Powder)

The existence of a native oxide layer (SiOₓ) on the bit surface, also in very little quantities, substantially influences electric conductivity, lithium-ion diffusion kinetics, and interfacial responses, specifically in battery applications.

Understanding and controlling surface chemistry is consequently essential for using the full possibility of nano-silicon in sensible systems.

2. Synthesis Methods and Scalable Fabrication Techniques

2.1 Top-Down Methods: Milling, Etching, and Laser Ablation

The manufacturing of nano-silicon powder can be broadly classified into top-down and bottom-up techniques, each with unique scalability, purity, and morphological control features.

Top-down strategies include the physical or chemical decrease of mass silicon right into nanoscale pieces.

High-energy ball milling is an extensively made use of commercial approach, where silicon chunks go through extreme mechanical grinding in inert environments, leading to micron- to nano-sized powders.

While affordable and scalable, this method often introduces crystal flaws, contamination from grating media, and wide bit dimension circulations, calling for post-processing filtration.

Magnesiothermic decrease of silica (SiO TWO) followed by acid leaching is one more scalable path, particularly when making use of natural or waste-derived silica sources such as rice husks or diatoms, providing a sustainable path to nano-silicon.

Laser ablation and reactive plasma etching are extra exact top-down approaches, with the ability of creating high-purity nano-silicon with controlled crystallinity, however at greater cost and reduced throughput.

2.2 Bottom-Up Techniques: Gas-Phase and Solution-Phase Development

Bottom-up synthesis enables greater control over fragment dimension, shape, and crystallinity by building nanostructures atom by atom.

Chemical vapor deposition (CVD) and plasma-enhanced CVD (PECVD) enable the growth of nano-silicon from gaseous forerunners such as silane (SiH ₄) or disilane (Si ₂ H SIX), with specifications like temperature level, stress, and gas flow dictating nucleation and development kinetics.

These techniques are especially efficient for generating silicon nanocrystals installed in dielectric matrices for optoelectronic tools.

Solution-phase synthesis, consisting of colloidal paths making use of organosilicon compounds, allows for the production of monodisperse silicon quantum dots with tunable emission wavelengths.

Thermal disintegration of silane in high-boiling solvents or supercritical liquid synthesis likewise produces high-grade nano-silicon with slim size distributions, suitable for biomedical labeling and imaging.

While bottom-up methods usually create exceptional material top quality, they face obstacles in large-scale manufacturing and cost-efficiency, necessitating ongoing research study into crossbreed and continuous-flow processes.

3. Energy Applications: Reinventing Lithium-Ion and Beyond-Lithium Batteries

3.1 Duty in High-Capacity Anodes for Lithium-Ion Batteries

One of one of the most transformative applications of nano-silicon powder hinges on power storage space, particularly as an anode material in lithium-ion batteries (LIBs).

Silicon uses a theoretical details capability of ~ 3579 mAh/g based on the development of Li ₁₅ Si Four, which is nearly ten times greater than that of standard graphite (372 mAh/g).

Nevertheless, the large volume development (~ 300%) during lithiation triggers bit pulverization, loss of electric get in touch with, and continuous strong electrolyte interphase (SEI) formation, leading to rapid capacity discolor.

Nanostructuring alleviates these problems by shortening lithium diffusion paths, suiting stress better, and lowering fracture possibility.

Nano-silicon in the form of nanoparticles, permeable frameworks, or yolk-shell structures enables reversible biking with enhanced Coulombic efficiency and cycle life.

Business battery technologies now include nano-silicon blends (e.g., silicon-carbon compounds) in anodes to enhance power thickness in consumer electronics, electrical automobiles, and grid storage space systems.

3.2 Potential in Sodium-Ion, Potassium-Ion, and Solid-State Batteries

Past lithium-ion systems, nano-silicon is being checked out in arising battery chemistries.

While silicon is less responsive with sodium than lithium, nano-sizing improves kinetics and makes it possible for restricted Na ⁺ insertion, making it a prospect for sodium-ion battery anodes, specifically when alloyed or composited with tin or antimony.

In solid-state batteries, where mechanical stability at electrode-electrolyte interfaces is critical, nano-silicon’s capability to undertake plastic deformation at tiny scales lowers interfacial anxiety and improves get in touch with maintenance.

Furthermore, its compatibility with sulfide- and oxide-based solid electrolytes opens methods for more secure, higher-energy-density storage space services.

Research remains to maximize user interface engineering and prelithiation techniques to maximize the durability and efficiency of nano-silicon-based electrodes.

4. Emerging Frontiers in Photonics, Biomedicine, and Composite Materials

4.1 Applications in Optoelectronics and Quantum Source Of Light

The photoluminescent buildings of nano-silicon have actually renewed initiatives to establish silicon-based light-emitting tools, a long-standing challenge in integrated photonics.

Unlike mass silicon, nano-silicon quantum dots can exhibit effective, tunable photoluminescence in the visible to near-infrared range, making it possible for on-chip light sources compatible with complementary metal-oxide-semiconductor (CMOS) innovation.

These nanomaterials are being incorporated into light-emitting diodes (LEDs), photodetectors, and waveguide-coupled emitters for optical interconnects and sensing applications.

In addition, surface-engineered nano-silicon shows single-photon emission under particular flaw configurations, placing it as a prospective system for quantum data processing and safe and secure interaction.

4.2 Biomedical and Environmental Applications

In biomedicine, nano-silicon powder is obtaining attention as a biocompatible, eco-friendly, and safe alternative to heavy-metal-based quantum dots for bioimaging and medicine distribution.

Surface-functionalized nano-silicon bits can be developed to target details cells, release therapeutic agents in response to pH or enzymes, and give real-time fluorescence monitoring.

Their deterioration into silicic acid (Si(OH)FOUR), a normally occurring and excretable compound, reduces lasting toxicity problems.

In addition, nano-silicon is being investigated for environmental remediation, such as photocatalytic destruction of contaminants under visible light or as a decreasing representative in water therapy processes.

In composite materials, nano-silicon boosts mechanical stamina, thermal stability, and use resistance when integrated right into steels, porcelains, or polymers, particularly in aerospace and automobile elements.

Finally, nano-silicon powder stands at the crossway of fundamental nanoscience and commercial advancement.

Its unique mix of quantum results, high sensitivity, and convenience throughout power, electronic devices, and life sciences highlights its role as an essential enabler of next-generation technologies.

As synthesis strategies advancement and combination obstacles relapse, nano-silicon will certainly continue to drive progression toward higher-performance, lasting, and multifunctional product systems.
